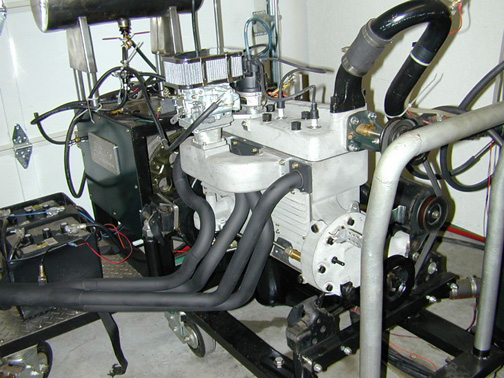

This engine produces 95 horsepower in streetable form.
| DONOVAN MODEL D MACHINEWORK & LABOR | |||||||||
| DESCRIPTION | PRICE | ||||||||
| ENGINE BLUEPRINT & ASSEMBLY LABOR | $ 2,000.00 | ||||||||
| MACHINE FLYWHEEL FOR V-8 PRESSUREPLATE | $ 125.00 | ||||||||
| DRILL EXTRA CRANKSHAFT MOUNTING HOLES IN FLYWHEEL FLANGE | $ 100.00 | ||||||||
| INSTALL FLYWHEEL RING GEAR | $ 15.00 | ||||||||
| UPS PARTS TO & FROM HOUSTON FOR TEFLON COATINGS | $ 25.00 | ||||||||
| TEFLON COAT SKIRTS & CERAMIC TOPS 4 PISTONS | $ 171.60 | ||||||||
| REBUILD OIL PUMP & WELD &TURN, MODIFY TO DONOVANS SPECS | $ 125.00 | ||||||||
| WELD & TURN PUMP DRIVE HOUSING TO SEAL OIL PASSAGE | $ 50.00 | ||||||||
| MODIFY OIL PAN TO FIT DONOVAN BLOCK | $ 125.00 | ||||||||
| HONE CYLINDERS TO FIT PISTONS | $ 85.00 | ||||||||
| BRUSH FINISH CYLINDER WALLS | $ 40.00 | ||||||||
| BALANCE RODS | $ 42.50 | ||||||||
| BALANCE PISTONS & PINS | $ 50.00 | ||||||||
| VALVE JOB | $ 85.00 | ||||||||
| LAP VALVES | $ 35.00 | ||||||||
| INSTALL CAM BEARINGS | $ 85.00 | ||||||||
| MACHINE COMBUSTION CHAMBERS TO CLEAR VALVES | $ 100.00 | ||||||||
| C.C. DONOVAN HEAD | $ 110.00 | ||||||||
| BALANCE CRANK,FLYWHEEL,PULLEY&CLUTCH ASSEMBLY | $ 260.00 | ||||||||
| ADD EXTRA OIL PAN BOLT HOLES | $ 85.00 | ||||||||
| MODIFY SIDE COVER FOR OIL PRESSURE RELIEF VALVE | $ 25.00 | ||||||||
| PLUMB OIL SYSTEM WITH STAINLESS LINE | $ 125.00 | ||||||||
| CHAMFER CYLINDERS | $ 10.00 | ||||||||
| CHAMFER BOTH SIDES ROD BEARINGS | $ 10.00 | ||||||||
| MAKE CUSTOM TIMING PIN | $ 30.00 | ||||||||
| HONE FRONT PULLEY TO FIT CRANK SNOUT | $ 25.00 | ||||||||
| DRILL REAR MAIN BEARING OIL HOLE TO MATCH BLOCK | $ 25.00 | ||||||||
| DRILL & TAP MAIN OIL PASSAGE IN BLOCK FOR #8 OUTLET FITTING & O-RING | $ 50.00 | ||||||||
| MACHINE INTAKE MANIFOLD MOUNTING FLANGE TO FIT FOR HEADER | $ 35.00 | ||||||||
| MAKE WEBER CARBURETOR TO MANIFOLD ADAPTOR | $ 225.00 | ||||||||
| NOTCH OIL PAN TO CLEAR RODS | $ 50.00 | ||||||||
| CUT OIL BAFFLE PLATE FOR PRESSURE FED RODS | $ 50.00 | ||||||||
| MAKE SPRING LOCATING CUP FOR INTERMEDIATE DRIVE RETAINING SPRING | $ 35.00 | ||||||||
| MAKE REAR CAM PLUG | $ 25.00 | ||||||||
| ASSEMBLE NEW WATERPUMP | $ 25.00 | ||||||||
| LABOR & MACHINE WORK | $ 4,459.10 | ||||||||
| PARTS & TAX | $14,759.16 | ||||||||
| TOTAL | $19,218.26 | ||||||||
| DONOVAN MODEL D ENGINE PARTS | |||||||||
| QUANITY | PART # | DESCRIPTION | UNIT PRICE | TOTAL | |||||
| 1 | MODEL D DONOVAN ALUMINUM BLOCK | $5,157.60 | $ 5,157.60 | ||||||
| 1 | MODEL D ALUMINUM HEAD | $ 610.00 | $ 610.00 | ||||||
| 1 | CROWER BILLIT CRANKSHAFT | $2,950.00 | $ 2,950.00 | ||||||
| 1 | SET OF 4 BILLIT STEEL RODS | $ 825.00 | $ 825.00 | ||||||
| 1 | CAM BEARING SET | $ 43.00 | $ 43.00 | ||||||
| 1 | HEAD STUD SET | $ 175.00 | $ 175.00 | ||||||
| 1 | ALUMINUM FRONT COVER | $ 250.00 | $ 250.00 | ||||||
| 1 | ALUMINUM SIDE GEAR COVER | $ 40.25 | $ 40.25 | ||||||
| 1 | ALUMINUM TAPPET COVER | $ 55.00 | $ 55.00 | ||||||
| 1 | INTAKE MANIFOLD, SINGLE CARB | $ 210.00 | $ 210.00 | ||||||
| 4 | STAINLESS STEEL INTAKE VALVE | $ 40.00 | $ 160.00 | ||||||
| 4 | STAINLESS STEEL EXHAUST VALVE | $ 40.00 | $ 160.00 | ||||||
| 1 | REMOTE OIL FILTER ADAPTOR | $ 50.00 | $ 50.00 | ||||||
| 1 | VALVE SPRING CUPS | $ 160.00 | $ 160.00 | ||||||
| 1 | UPS DONOVAN | $ 165.00 | $ 165.00 | ||||||
| 1 | A-6256-B | BRONZE CAM GEAR | $ 93.60 | $ 93.60 | |||||
| 1 | A-6306-B | BILLIT STEEL CRANK GEAR | $ 39.33 | $ 39.33 | |||||
| 1 | A-6259-A | CAM NUT | $ 20.00 | $ 20.00 | |||||
| 1 | A-6319-A | CRANK RATCHET BOLT | $ 9.95 | $ 9.95 | |||||
| 1 | A-6312-A | FRONT PULLEY | $ 30.50 | $ 30.50 | |||||
| 1 | A-6314 | TIMING SCALE | $ 10.85 | $ 10.85 | |||||
| 1 | 455/456 | ISKY VALVE SPRING SET | $ 66.30 | $ 66.30 | |||||
| 1 | 707-ST | ISKY STEEL RETAINER SET | $ 70.20 | $ 70.20 | |||||
| 1 | UPS ISKY | $ 12.07 | $ 12.07 | ||||||
| 1 | A-6517 | VALVE KEEPER SET | $ 5.00 | $ 5.00 | |||||
| 1 | A-6307 | CRANKSHAFT KEY | $ 0.95 | $ 0.95 | |||||
| 1 | A-6560 | OIL PUMP DRIVE HOUSING | $ 18.50 | $ 18.50 | |||||
| 1 | A-6551 | OIL PUMP DRIVE GEAR | $ 28.50 | $ 28.50 | |||||
| 1 | A-6561 | OIL PUMP DRIVE SLEEVE | $ 2.85 | $ 2.85 | |||||
| 1 | A-6570 | OIL PUMP DRIVE RETAINING SPRING | $ 1.50 | $ 1.50 | |||||
| 1 | OIL PUMP CORE | $ 25.00 | $ 25.00 | ||||||
| 1 | A-6600 | OIL PUMP REBUILD KIT | $ 26.12 | $ 26.12 | |||||
| 1 | A-6337-C | 350 REAR SEAL | $ 11.32 | $ 11.32 | |||||
| 1 | CRANE F-220/320-12 | $ - | |||||||
| 1 | HARD CHROMED 5 JOURNAL CAMSHAFT | $ 442.82 | $ 442.82 | ||||||
| 1 | A-6623 | OIL PUMP SCREEN | $ 3.95 | $ 3.95 | |||||
| 1 | USED FLYWHEEL | $ 60.00 | $ 60.00 | ||||||
| 1 | A-6620 | OIL PUMP RETAINING SPRING | $ 1.10 | $ 1.10 | |||||
| 1 | A-6310 | CRANKSHAFT OIL SLINGER | $ 2.44 | $ 2.44 | |||||
| 1 | A-6023-A | TIMING PIN | $ 3.25 | $ 3.25 | |||||
| 1 | A-6023-X | TIMING PIN GASKET | $ 0.45 | $ 0.45 | |||||
| 1 | A-6700-M | FRONT SEAL | $ 15.00 | $ 15.00 | |||||
| 1 | A-6750 | DIP STICK | $ 2.50 | $ 2.50 | |||||
| 1 | A-6763 | OIL FILLER TUBE | $ 14.60 | $ 14.60 | |||||
| 1 | A-6766-P | OIL FILLER CAP | $ 5.30 | $ 5.30 | |||||
| 1 | ADJUSTABLE LIFTER SET | $ 127.20 | $ 127.20 | ||||||
| 1 | UPS LIFTERS | $ 13.00 | $ 13.00 | ||||||
| 4 | 390164 | ARIAS PISTON,PIN & SPIROLOCK | $ 142.87 | $ 571.48 | |||||
| 1 | UPS ARIAS | $ 16.40 | $ 16.40 | ||||||
| 1 | A-6149-M | RING SET | $ 51.95 | $ 51.95 | |||||
| 1 | MS909P-STD | CLEVITE MAIN BEARING | $ 46.00 | $ 46.00 | |||||
| 4 | CB-745P-STD | CLEVITE ROD BEARING | $ 8.10 | $ 32.40 | |||||
| 1 | A-6676-C | OIL PAN BOLT SET | $ 4.50 | $ 4.50 | |||||
| 1 | 6002 | OIL PRESSURE RELIEF VALVE | $ 40.03 | $ 40.03 | |||||
| 1 | 938-6 | #6 FEMALE T FITING | $ 13.39 | $ 13.39 | |||||
| 2 | 815-6 | #6 UNION & O-RING | $ 6.28 | $ 12.56 | |||||
| 1 | 832-6-8 | #6 TO #8 ADAPTOR, NUT & O-RINGS | $ 11.36 | $ 11.36 | |||||
| 1 | A-6018-X | FRONT SIDE COVER BOLT SET | $ 3.20 | $ 3.20 | |||||
| 4 | 819-6 | #6 LINE SLEEVE | $ 1.47 | $ 5.88 | |||||
| 4 | 818-6 | #6 LINE NUT | $ 1.81 | $ 7.24 | |||||
| 1 | A-8505-XS | STAINLESS WATERPUMP STUD SET | $ 2.80 | $ 2.80 | |||||
| 18 | 1/4 X 3/4 FERRY CAP BOLT | $ 0.40 | $ 7.20 | ||||||
| 4 | 5/16 X 1.25 | CARB MOUNTING STUD | $ 0.58 | $ 2.32 | |||||
| 4 | 5/16 FINE | FLANGE NUT | $ 0.36 | $ 1.44 | |||||
| 1 | B-6008-B | GASKET SET | $ 39.95 | $ 39.95 | |||||
| 1 | DONOVAN CAM THRUST BEARING | $ 32.50 | $ 32.50 | ||||||
| 1 | DONOVAN TAPPET COVER GASKET | $ 21.62 | $ 21.62 | ||||||
| 1 | A-6019 | FRONT COVER BOLT SET | $ 3.75 | $ 3.75 | |||||
| 1 | A-6001-S | RUSTOLEUM BLACK PAINT | $ 3.25 | $ 3.25 | |||||
| 1 | A-8250-B | WATER OUTLET NECK | $ 19.30 | $ 19.30 | |||||
| 1 | 0X3952301 | OIL FILTER ADAPTOR | $ 24.69 | $ 24.69 | |||||
| 2 | 39516644 | OIL FILTER ADAPTOR BOLTS | $ 2.85 | $ 5.70 | |||||
| 1 | A-6730-B | OIL PAN DRAIN PLUG | $ 2.85 | $ 2.85 | |||||
| 1 | A-12249 | DISTRIBUTOR DRIVE SHAFT | $ 2.90 | $ 2.90 | |||||
| 1 | USED MODEL A OIL PAN | $ 50.00 | $ 50.00 | ||||||
| 1 | 22680.01 | WEBER CARBURETOR | $ 311.95 | $ 311.95 | |||||
| 1 | 99217.332S | AIR CLEANER | $ 25.94 | $ 25.94 | |||||
| 1 | A-7563-V | V-8 PRESSURE PLATE | $ 97.00 | $ 97.00 | |||||
| 1 | A-7563-VB | PRESSURE PLATE BOLT SET | $ 6.50 | $ 6.50 | |||||
| 1 | A-6384 | FLYWHEEL RING GEAR | $ 23.70 | $ 23.70 | |||||
| 1 | A-7550 | CLUTCH DISK | $ 34.50 | $ 34.50 | |||||
| 1 | A-7600-L | FLYWHEEL PILOT BEARING | $ 4.00 | $ 4.00 | |||||
| 1 | A-8501-BC | LEAKLESS WATERPUMP | $ 79.50 | $ 79.50 | |||||
| 1 | 51061 | WIX OIL FILTER | $ 8.97 | $ 8.97 | |||||
| 4 | N12YC | CHAMPION SPARK PLUGS | 1.98 | $ 7.92 | |||||
| 6 | T50W | TORCO 50 WT. RACING OIL | $ 7.00 | $ 42.00 | |||||
| 2 | IDLE JET | $ 8.37 | $ 16.74 | ||||||
| 2 | MAIN JET | $ 6.11 | $ 12.22 | ||||||
| 1 | AIR CORRECTOR JET | $ 8.37 | $ 8.37 | ||||||
| $ - | |||||||||
| SUB TOTAL | $13,890.97 | ||||||||
| TAX | $ 868.19 | ||||||||
| TOTAL | $14,759.16 | ||||||||
