PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		1
CUSTOMER:		DONOVAN MODEL D					DATE:		6/3/2008
ADDRESS:							PHONE:
ENGINE:	DONOVAN MODEL D						TIME:	11:00 AM
ENGINE NUMBER:
BAROMETRIC PRESSURE:			29.66	ELEVATION:		590	TEMPERATURE:		91
STATION PRESSURE:			29.0263			CORRECTION FACTOR:			1.092233
HUMIDITY:		46
ENGINE	TEMPERATURE:		180		FUEL:	10% ETHANOL PERMIUM, 94 OCTANE
RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1300		12.5		146.29		36.21		39.55
1500		13.2		154.09		44.01		48.07
1700		13.6		158.54		51.32		56.05
2000		14		163.00		62.07		67.80
2200		13.8		160.77		67.34		73.56
2500		13.4		156.31		74.41		81.27
2700		13.5		157.43		80.93		88.40
3000		13		151.86		86.74		94.74
3250		11.6		136.27		84.32		92.10
				0.00		0.00		0.00
DESCRIPTION:		NEW  MODEL D DONOVAN,  RUN IN 3 HRS ON DYNO
	6.5-1 COMPRESSION, DONOVAN HEAD
	CRANE F-220/320-12 CAMSHAFT
	32/36 DGV WEBER 2 BBL CARBURETOR
	F S IGNITIONS ELECTRONIC DISTRIBUTOR 27 DEGREES TIMING
	DYNO 1.5" X 32"  X 2.5" COLLECTOR HEADER INTO DYNO MUFFLER
PIRANIO'S ANTIQUE AUTOMOTIVE

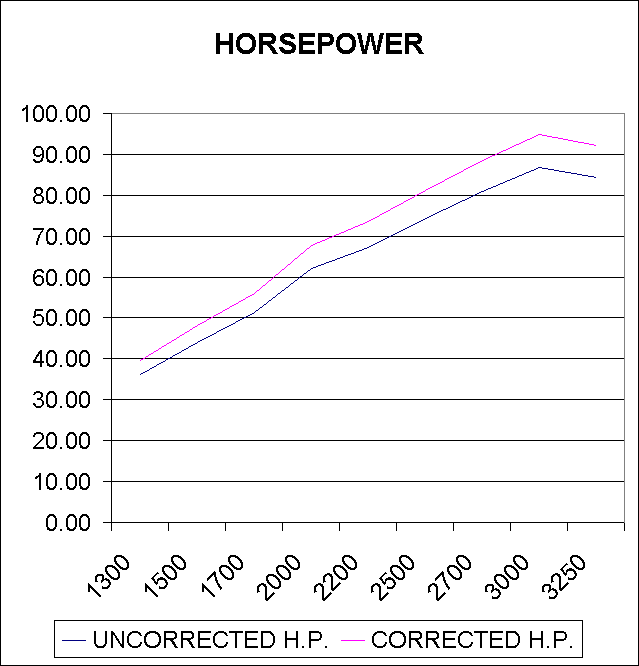

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE

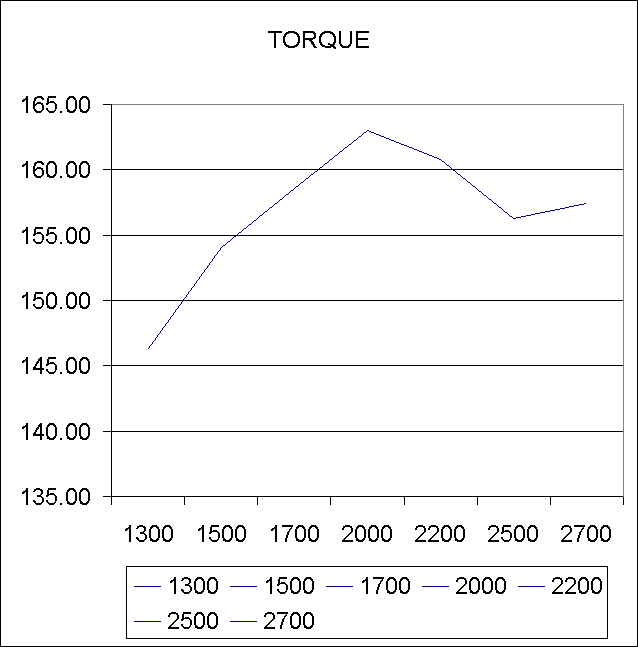

DYNO SHEET - TORQUE GRAPH
