ROOF 101 CYCLONE HEAD ENGINE FOR DYNO
TESTING @ PIRANIO’S ANTIQUE AUTOMOTIVE
In co-operation with Charlie
Yapp @ Secrets Of Speed & Scalded Dog Speed Parts, we are constructing a
Model A Ford short block to accept the new Cyclone cylinder head and components.
We will use this engine as the development engine for this combination.
The overview is to build an
engine that is easily re-producible by the Model A enthusiast,
using components supplied by us at Piranio’s Antique Automotive and other Model
A Ford suppliers.
We will be posting updates
and dyno results on this project on our website: www.modelaparts.net,
as they are available.
At this time we are planning
to start the dyno tests in late 2009 or early 2010.

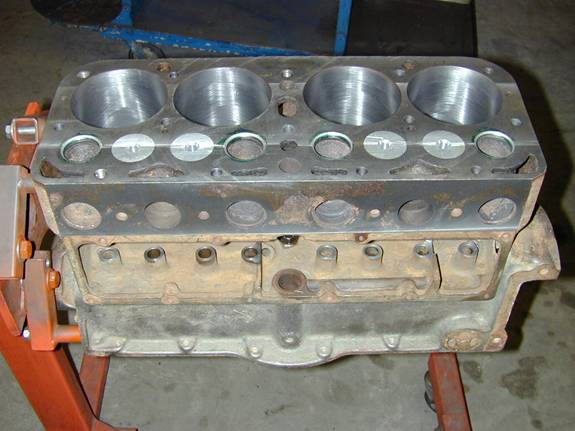

We started with a Model A
Ford block, surfaced the pan rails, intake and deck surfaces.
Intake pushrod guides,
provided by Charlie Yapp, were installed where the intake seats would normally
be & hard exhaust seats were installed in the stock location. The block was
then bored & honed to accept pistons with our ceramic coating on the tops
& Teflon coated skirts. The ceramic reflects the heat of combustion back
into the combustion chamber for more efficient combustion, while the Teflon on
the piston skirts acts as a dry lubricant, allowing tighter piston to wall
clearances. The tighter piston to wall clearances keep the rings square to the
cylinder for better sealing.

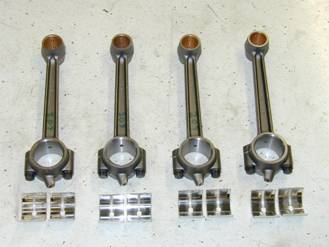

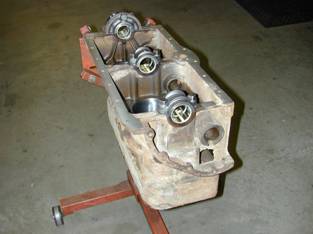

We are using the Antique
Automotive insert rod & main bearings while retaining the stock oiling
system.

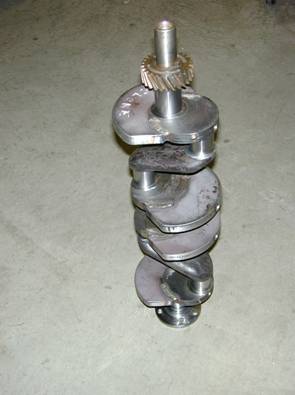

The Model A crankshaft was
counterweighted, rod & main journals ground and the rear flange faced. We
then balanced the rotating assembly.

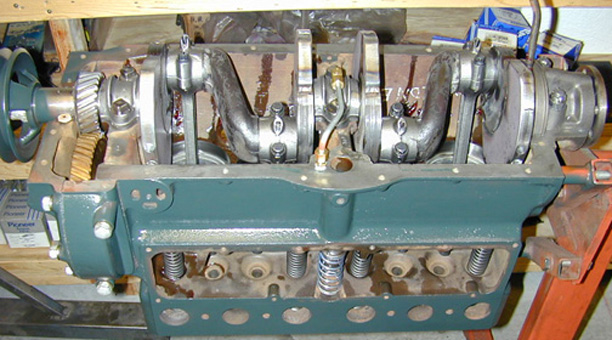

The valve train will consist
of a model “B” camshaft driven by a Dan
McEachern bronze cam gear & billet steel crank gear. The intake valve is in
the Cyclone head, while the exhaust valve is one of our stainless steel valves
positioned in the stock location. The block has been machined to accept
adjustable lifters and we will use stock exhaust valve springs.
This concludes our progress
to this point, watch our web site & Charlie Yapps, www.secretsofspeed.com for updates.
Dennis Piranio
Piranio’s Antique Automotive.
