PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
								RUN NUMBER:
CUSTOMER:		SHOP						DATE:	6/13/2009
ADDRESS:								PHONE:
ENGINE:		STOCK						TIME:	9:30 AM
ENGINE NUMBER:		2522255			CU. IN.		208.92
BAROMETRIC PRESSURE:			29.92	ELEVATION:		590	TEMPERATURE:		86
STATION PRESSURE:			29.2863			CORRECTION FACTOR:			1.090406
HUMIDITY:		64
ENGINE	TEMPERATURE:		180		FUEL:	10% ETHANOL REGULAR GASOLINE
RPM		GAUGE	TORQUE	HORSEPOWER			CORRECTED		VOLUMETRIC
		READING					HORSEPOWER		EFFIECENCY
1300		11.9	131.79		32.62		35.57		73.34287
1500		12	133.01		37.99		41.42		74.01925
1700		11.5	126.99		41.10		44.82		70.6695
2000		10.3	113.05		43.05		46.94		62.91415
2200		9.8	107.41		44.99		49.06		59.77684
2500		8.6	94.16		44.82		48.87		52.39983
2700		7.5	82.19		42.25		46.07		45.74074
DESCRIPTION:
STOCK DYNO ENGINE, WEBER CARB & MANIFOLD, STOCK MUFFLER, 27 DEGREES TIMING
WEBER CARB RE-JETTED: PRIMARY IDLE: 55, SECONDARY IDLE: 50
PRIMARY MAIN: 135, SECONDARY MAIN: 140
PRIMARY AIR: 160, SECONDARY AIR: 165
THE ADDITION OF THE WEBER CARBURETOR & INTAKE MANIFOLD PRODUCES AN 18% INCREASE
IN PEAK HORSEPOWER COMPAIRED TO THE STOCK ENGINE.
PIRANIO'S ANTIQUE AUTOMOTIVE

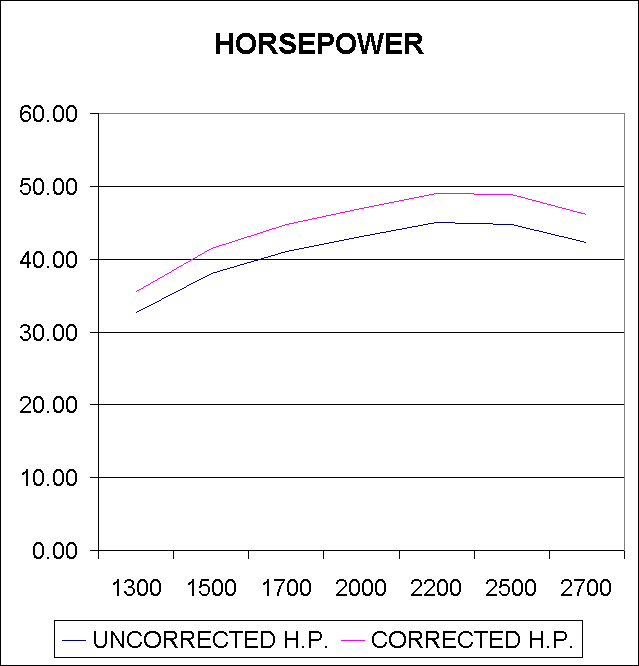

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE

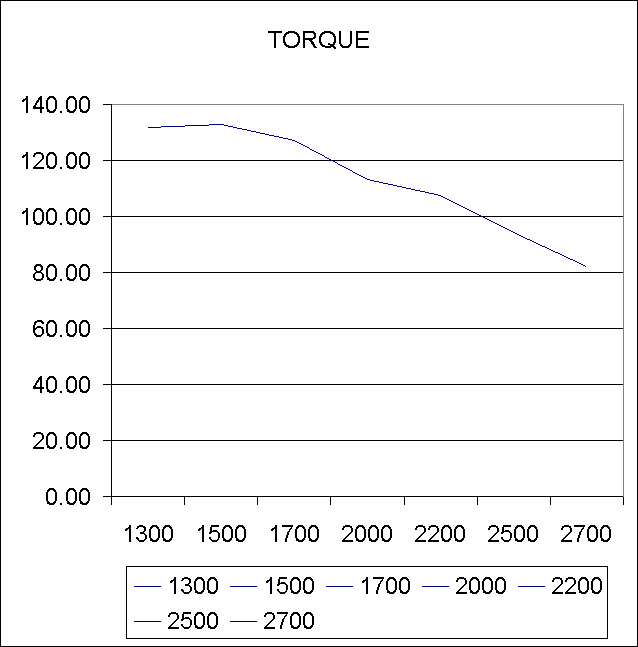

DYNO SHEET - TORQUE GRAPH
