PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		10
CUSTOMER:		SHOP					DATE:	3/5/2006
ADDRESS:							PHONE:
ENGINE:	SHOP STOCK						TIME:	11.40 AM
BAROMETRIC PRESSURE:			30.14	ELEVATION:		690	TEMPERATURE:		71
STATION PRESSURE:			29.4006			CORRECTION FACTOR:			1.077671
HUMIDITY:		73
ENGINE	TEMPERATURE:		180		FUEL:	GASOLINE, REGULAR
RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1200		21.8		134.57		30.75		33.14
1300		22.3		137.26		33.98		36.62
1500		22.6		138.88		39.66		42.75
1700		21.6		133.50		43.21		46.57
2000		19.5		122.20		46.53		50.15
2200		17.8		113.05		47.36		51.03
2500		14.6		95.84		45.62		49.16
2700		12.6		85.08		43.74		47.13
				0.00		0.00		0.00
				0.00		0.00		0.00
				0.00		0.00		0.00
DESCRIPTION:		STOCK ENGINE
C HEAD, A MANIFOLD BORED OUT TO B SIZES, B CARBURETOR
28 DEGREES TIMING
PIRANIO'S ANTIQUE AUTOMOTIVE

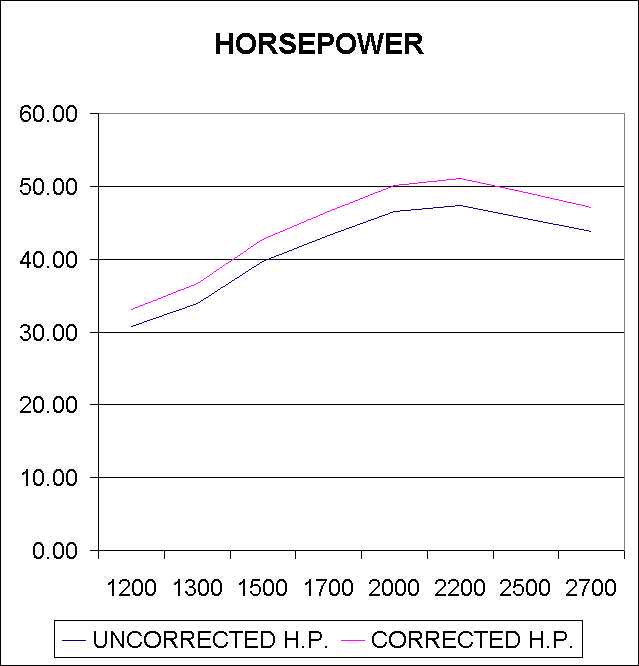

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
