PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET
							RUN NUMBER:		8
CUSTOMER:		DENNIS PIRANIO					DATE:	3/16/2007
ADDRESS:							PHONE:
ENGINE:	MODEL A FORD HP						TIME:	2:10 PM
ENGINE NUMBER:		A 27684
BAROMETRIC PRESSURE:			30.15	ELEVATION:		690	TEMPERATURE:		78
STATION PRESSURE:			29.4106			CORRECTION FACTOR:			1.07295
HUMIDITY:		57
ENGINE	TEMPERATURE:		180		FUEL:	PREMIUM 10% ETHANOL GASOLINE

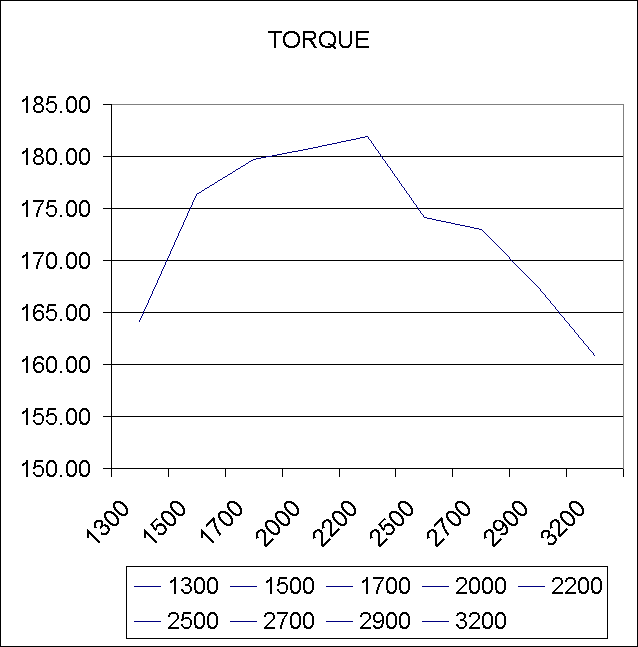

RPM		GAUGE		TORQUE		HORSEPOWER		CORRECTED
		READING						HORSEPOWER
1300		14.1		164.11		40.62		43.58
1500		15.2		176.36		50.37		54.04
1700		15.5		179.70		58.17		62.41
2000		15.6		180.82		68.86		73.88
2200		15.7		181.93		76.21		81.77
2500		15		174.13		82.89		88.94
2700		14.9		173.02		88.95		95.44
2900		14.4		167.45		92.46		99.21
3200		13.8		160.77		97.96		105.10
3500		12.8		149.63		99.72		106.99

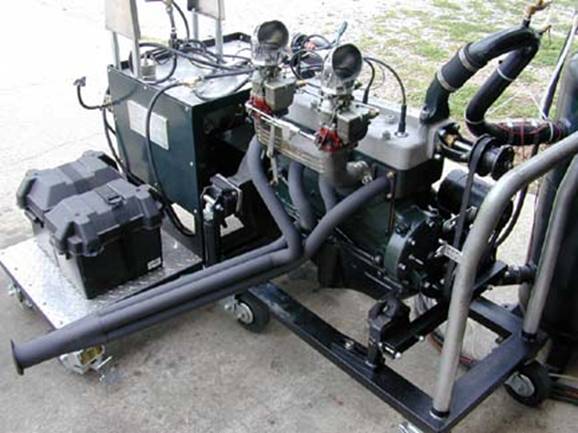

DESCRIPTION:		BURNS MANIFOLD, STROMBERG CARBS DONOVAN 7.3-1 HEAD, 27 DEGREES
		HEADER, 1.700" INTAKE VALVES, PORTED BLOCK
		CRANE F 260/360-12 CAMSHAFT
		DYNO STEEL MUFFLER
PIRANIO'S ANTIQUE AUTOMOTIVE

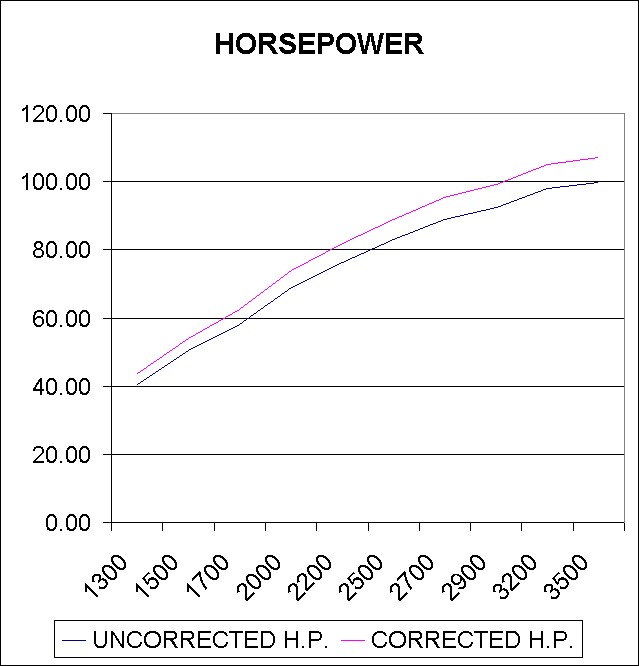

DYNO SHEET - HORSEPOWER GRAPH
PIRANIO'S ANTIQUE AUTOMOTIVE
DYNO SHEET - HORSEPOWER GRAPH
